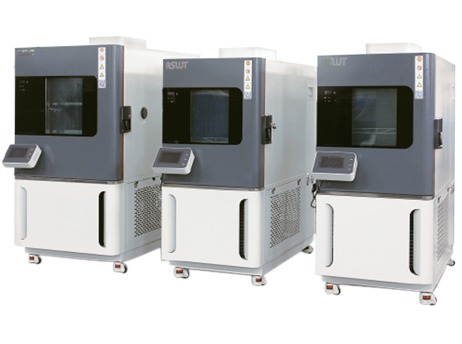

TC-PRO高低温湿热交变试验箱
产品简介
| 型号 Model | TC-PRO-0150 | TC-PRO-0300 | TC-PRO-0500 | TC-PRO-0800 | TC-PRO-1000 | TC-PRO-1200 | TC-PRO-1500 | |
| 工作室容积（升）Test Space Volume (L) | 150 | 300 | 500 | 800 | 1000 | 1200 | 1500 | |
|
工作室尺寸（mm） Test Space Dimensions |
W | 500 | 620 | 800 | 1000 | 1000 | 1000 | 1000 |
| D | 500 | 600 | 700 | 800 | 1000 | 1200 | 1500 | |
| H | 600 | 780 | 900 | 1000 | 1000 | 1000 | 1000 | |
|
外形尺寸（mm） Overall size(mm) |
W | 680 | 810 | 1000 | 1200 | 1200 | 1200 | 1200 |
| D | 1405 | 1580 | 1650 | 1745 | 1945 | 2145 | 2445 | |
| H | 1660 | 1870 | 2000 | 2100 | 2100 | 2100 | 2100 | |
| 最低温度 Min. Temp. | -70℃，-60℃，-40℃，-20℃ | |||||||
| 最高温度 Max. Temp. | +100℃，+150℃，+180℃ | |||||||
| 温度波动度 Temp. Fluctuation | ≤±0.5℃ | |||||||
| 温度均匀度 Temp. Uniformity | ≤2.0℃ | |||||||
| 升温速率 Heating Rate | 1.0~3.0℃/min (或根据用户要求/or according to the customer's requirement) | |||||||
| 降温速率 Cooling Rate | 0.7~1.2℃/min (或根据用户要求/or according to the customer's requirement) | |||||||
| 湿度范围 Humidity Range | 10%RH~98%RH | |||||||
| 湿度误差 Humidity Diviation | +2/-3%RH | |||||||
| 冷却方式 Type of Cooling | 风冷/水冷 Air-cooled/Water-cooled | |||||||
| 额定电压 Nominal Voltage | AC380V or 220V ±10%，50Hz | |||||||
| 功率 Power (kW) | ≤6.2 | ≤9 | ≤11.5 | ≤12.5 | ≤15 | ≤15 | ≤16 | |
| 重量 Weight (kg) | 420 | 520 | 660 | 815 | 910 | 1050 | 1150 | |
